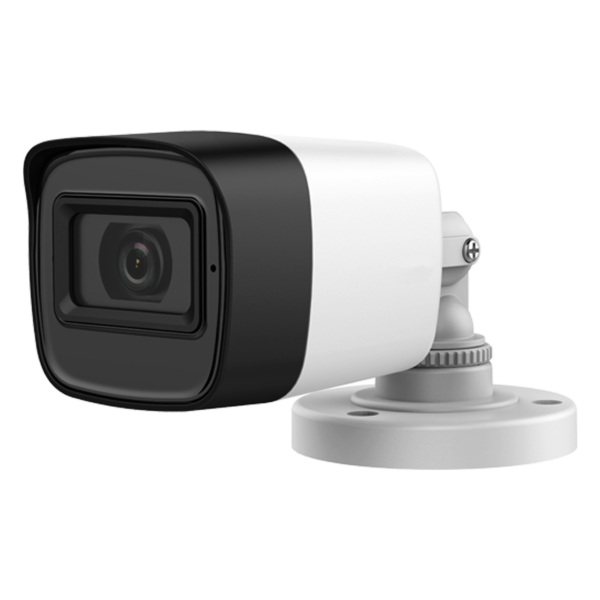

5 MP Audio Fixed Mini Bullet Camera

📷 5MP HD Bullet Camera | Weatherproof IP67

Camera Specifications:

• Image Sensor: 5 MP CMOS

• Maximum Resolution: 2560 (H) × 1944 (V) — Ultra HD clarity

• Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

• Shutter Speed:

  • PAL: 1/25 s to 1/50,000 s

  • NTSC: 1/30 s to 1/50,000 s

• Day & Night Mode: ICR (Automatic IR Cut Filter)

Lens Options:

• Fixed lens options: 2.8 mm / 3.6 mm / 6 mm

• Field of View (FOV):

  • 2.8 mm: 110.7° diagonal

  • 3.6 mm: 105.9° diagonal

  • 6 mm: 72.5° diagonal

• Lens Mount: M12

Pan/Tilt/Rotation Adjustment:

• Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Image Features:

• Adjustable Settings: Brightness, Sharpness, Mirror, Smart IR

• Noise Reduction: 2D DNR

• Image Enhancements: BLC (Back Light Compensation)

• White Balance: Auto Tracking (ATW) / Manual

• AGC: Supported for clearer low-light performance

Video Formats & Frame Rates:

• TVI: 5MP @20fps, 4MP @25/30fps, 1080P @25/30fps

• CVI: 4MP @25/30fps

• AHD: 5MP @20fps, 4MP @25/30fps

• CVBS: PAL/NTSC switchable

Infrared & Night Vision:

• IR Range: Up to 25 meters

• Illumination Type: Smart IR

Durability & Build:

• Material: Durable plastic housing

• Dimensions: 58 mm × 61 mm × 158.6 mm

• Weight: Approx. 160 g

• Protection Rating: IP67 (dustproof & waterproof)

• Operating Temperature: -40°C to 60°C

Power & Consumption:

• Power Supply: 12V DC ±25%

• Power Consumption: Max. 3.7 W

• Recommended: One power adapter per camera for best performance

Compatibility & Communication:

• Video Output: Switchable TVI/AHD/CVI/CVBS

• Communication Protocol: HIKVISION-C

• Language: English

✅ Ideal for indoor and outdoor security setups, offering 5MP Ultra HD resolution, versatile lens options, and robust IP67 protection — reliable performance in any environment.
